Greenlee
Features

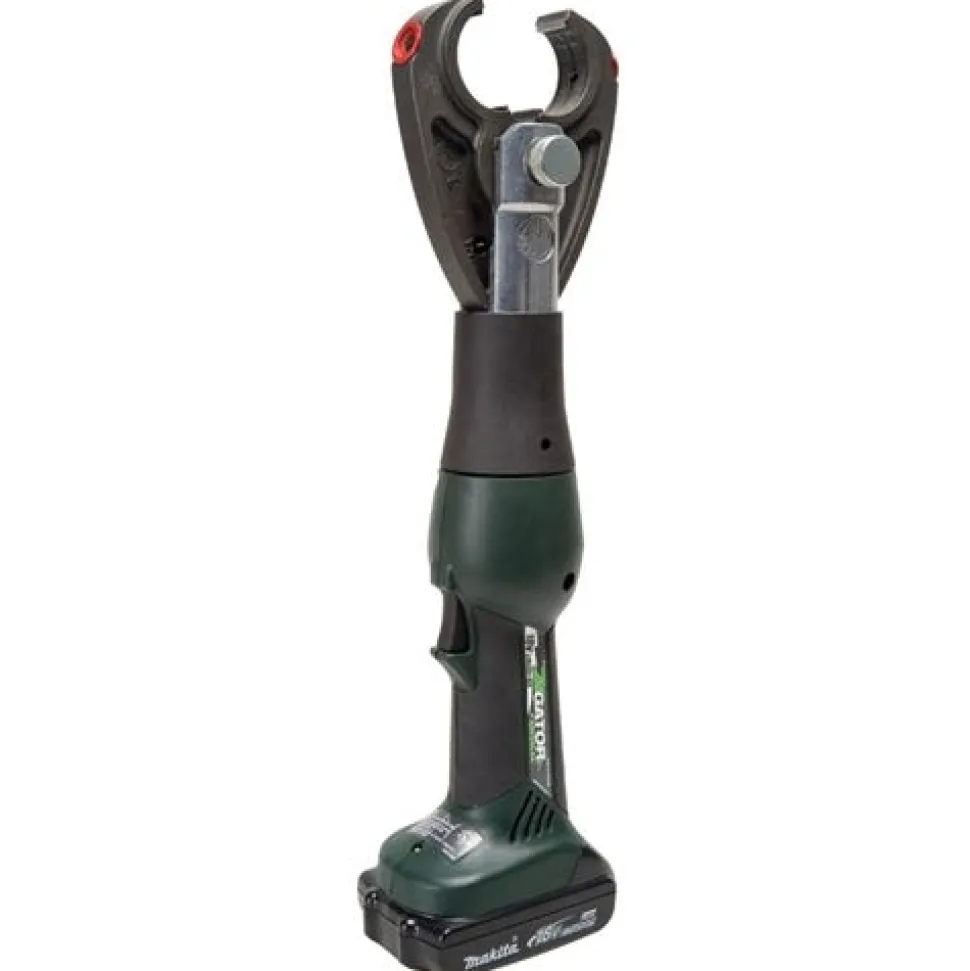

- 6 Ton 18V Battery Powered Crimping Tool EK628L11
- Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
- State Of The Art 18V Lithium Ion (Li-Ion) Battery Provides 70 PCT More Cycles Per Charge And Faster Cycle Times
- Led Light Provides The Operator With The Battery Charge And Tool Maintenance Status
- In Line Tool Style Is Light Weight And Very Easy To Control
- One Trigger Controls All Tool Functions
- Crimping Head Rotates 350 DEG
- Tools Automatically Retract When The Crimping Or Cutting Cycle Is Complete
- Over molded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
- Led Work Light Illuminates Dark Work Areas
- Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
- Smart Chargers Control The Charging Current; Charging Voltage And Battery Temperature to Maximize Battery Life
- Equipped With CJ22 Crimping Jaws That Accept Greenlee KC22 And KA22 Series Crimping Dies
- Crimping Capacity : 8 AWG – 600 KCMIL Copper Color Coded Connectors; 8 AWG – 350 KCMIL Aluminum Color Coded Connectors
- Includes: Gator Crimper; Case; (2) 18V Makita Batteries ; 120V Charger
| Crimping Force | 12,000 lbs. (53 kN) |
|---|---|
| Crimping Capacity | 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al |
| Type | Die style crimper |
| Overall Length | 18.5 IN (470mm) |
| Sub Brand | Gator |
| Standard | C/US UL Listed |
| Wire Size | 8 AWG – 600 kcmil Cu, 8 AWG – 350 kcmil Al |
| Connector Type | Color-coded lugs and splices |
| Country of Origin | Germany |
| Handle Type | In-Line Style with over molded rubber grip |
| OPT SKU | GREK628LX11 |
|---|---|
| MPN | EK628LX11 |
| UPC/GTIN | 783310609391 |
| Product Type | Cable & Wire Crimpers / Termination |
| Google Category | Hardware > Tools > Wire & Cable Hand Tools |
| Product Line | 18V |
| Power Method | Cordless |
| Package | Kit/Set |
| Voltage | 18V |
| Shipping Weight | 16.00 |
