Klein Digital Tracing Probe VDV500-223
$55.89
Additional Details
Use the Klein Tools Digital Tracing Probe to trace cables and wires on active and non-active networks when used with the Digital Tone Generator (Cat. No. VDV500-163; sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments.
Features
- Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
- Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

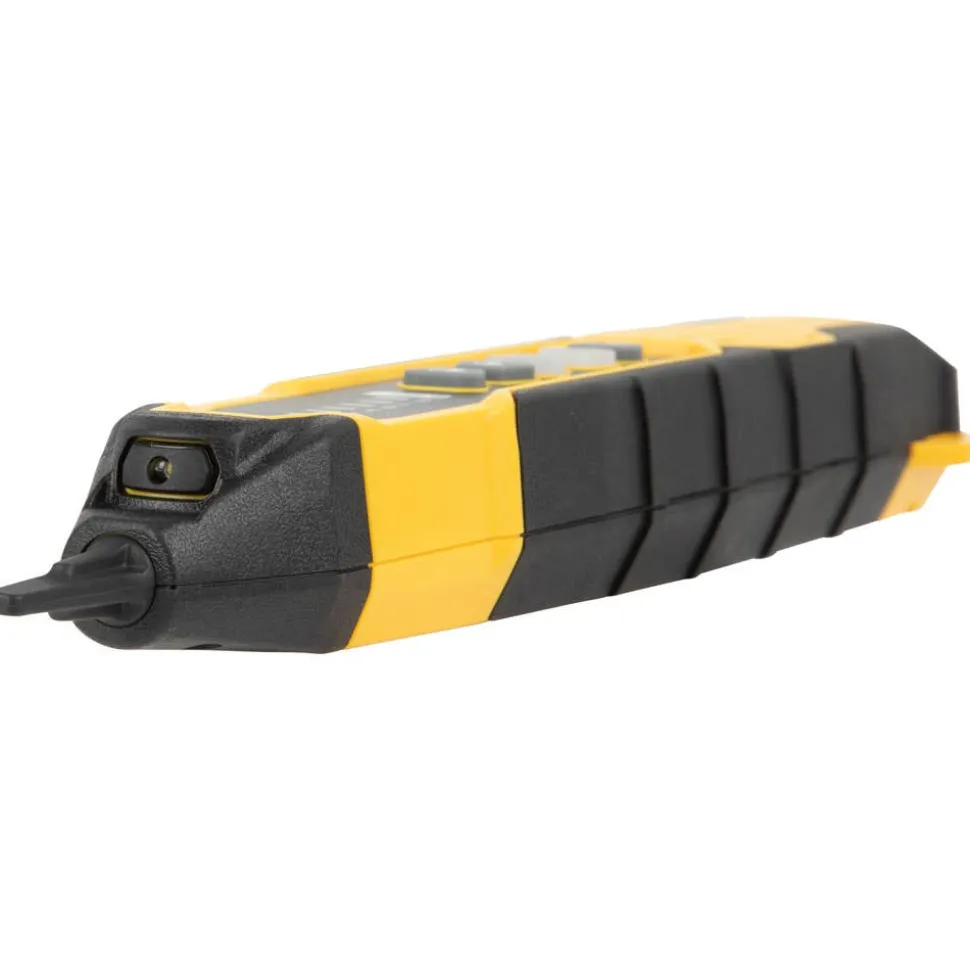

- Work light for use in dark spaces
- 3.5 mm headphone jack for use in noisy environments (headphones not included)
- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
- 60Hz filter for accurate tracing, works with Klein’s Scout® Pro and Lan Scout® Jr. testers
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
Manufacturer Specifications
| Adjustable Volume | Yes |
|---|---|
| Overall Length | 1.9″ (4.8 cm) |
| Type | Digital Wire Tracing |
| Overall Width | 1.3″ (3.3) |
| Amplifier Overload Indication | No |
| Self-Storing Remote | No |
| Auto-Power Off | Yes |
| Low Battery Indicator | Yes |

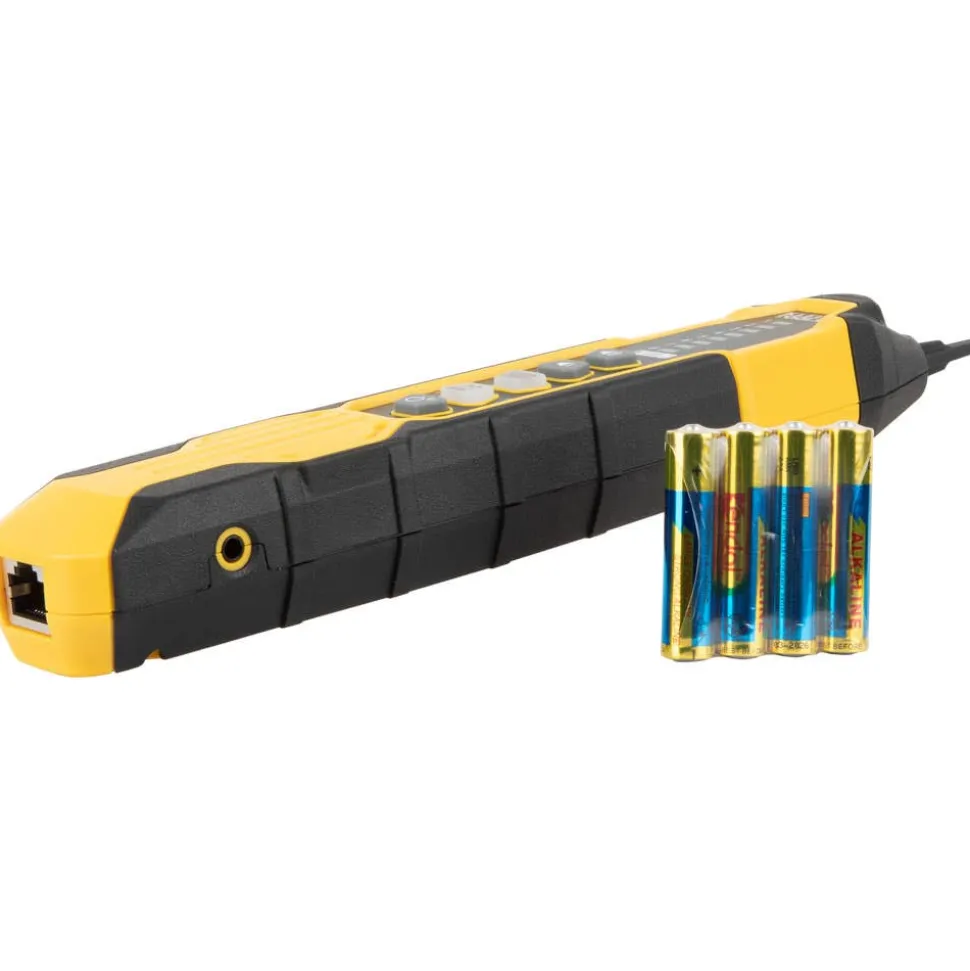

| Included | Tracing Probe; 4 x AAA Batteries |
| Visual Notification | LED |
| Material | ABS |
| Continuity Testing | No |
| Replacement Parts | VDV999920, VDV770500 |
| Replaceable Tip | Yes |
| Weight | 5.2 oz (147 g) |
| Batteries | 4 x AAA |
| Overall Height | 9.9″ (25.1 cm) |
| Country of Origin | China |
| Item Weight | 0.3200 lbs |
| Application | Wire Tracing |
| Item Width | 1.9200 in |
| Power On LED Indicator | Yes |
| Item Height | 1.3200 in |
| Battery Life | 20 hr |
| Item Depth | 9.9600 in |
Specifications
| OPT SKU | KLN-VDV500223 |
|---|---|
| MPN | VDV500-223 |
| UPC/GTIN | 092644583889 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 0.33 |
