Klein
Rechargeable Self-Leveling Green Planar Laser Level 93PLL
The Klein Tools’ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein’s self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm).
Â
FEATURES:

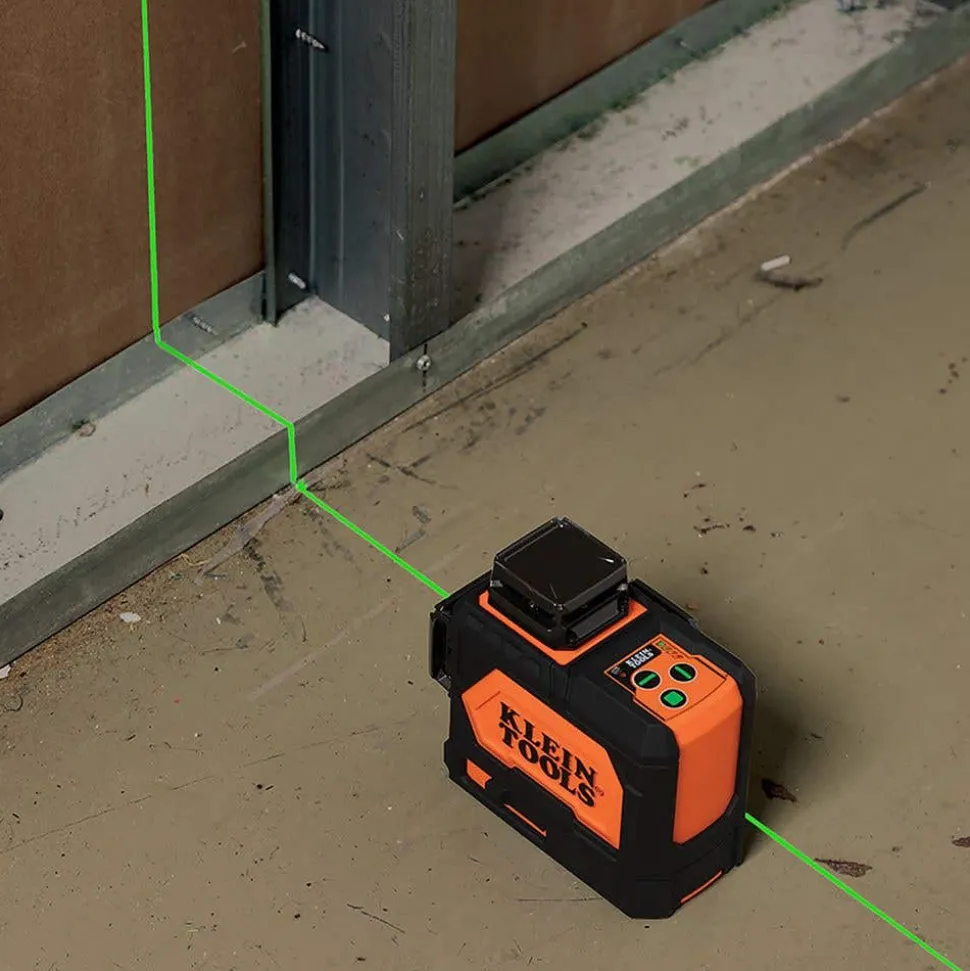

- Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines.

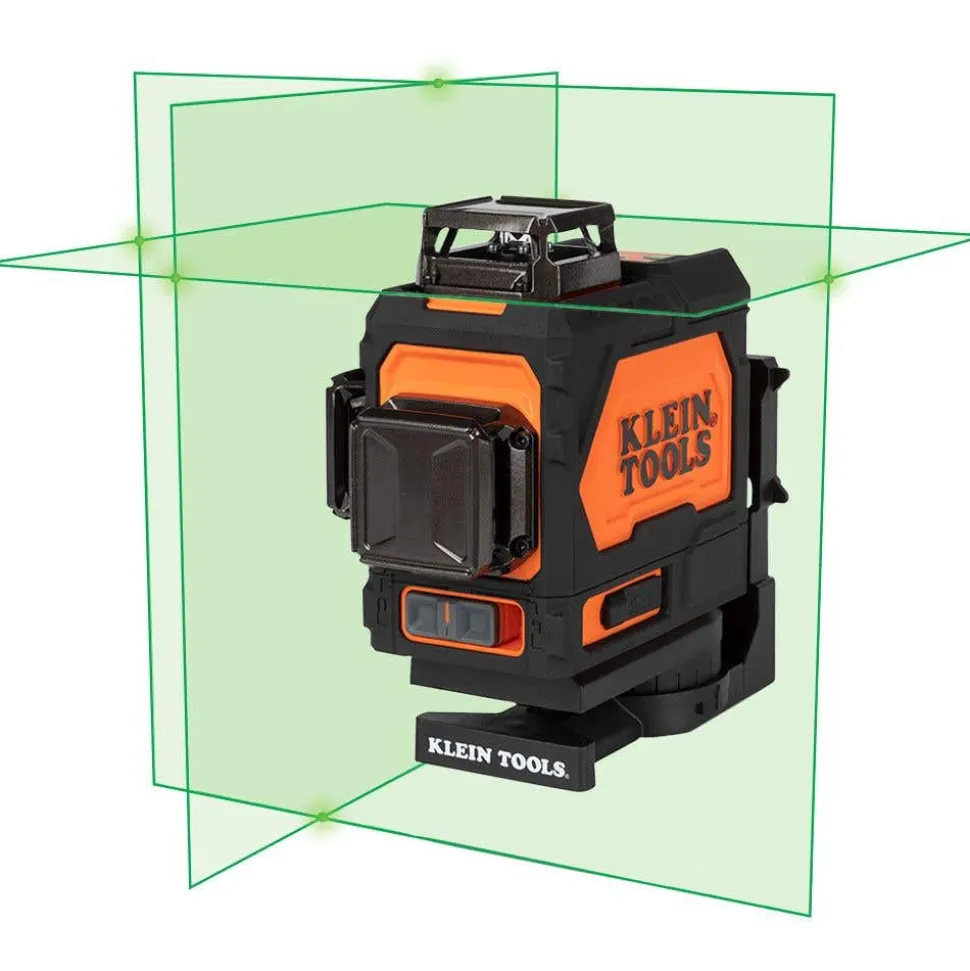

- Projects independently or together in X-, Y- and Z-planes for various layout and alignment options.
- View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane.

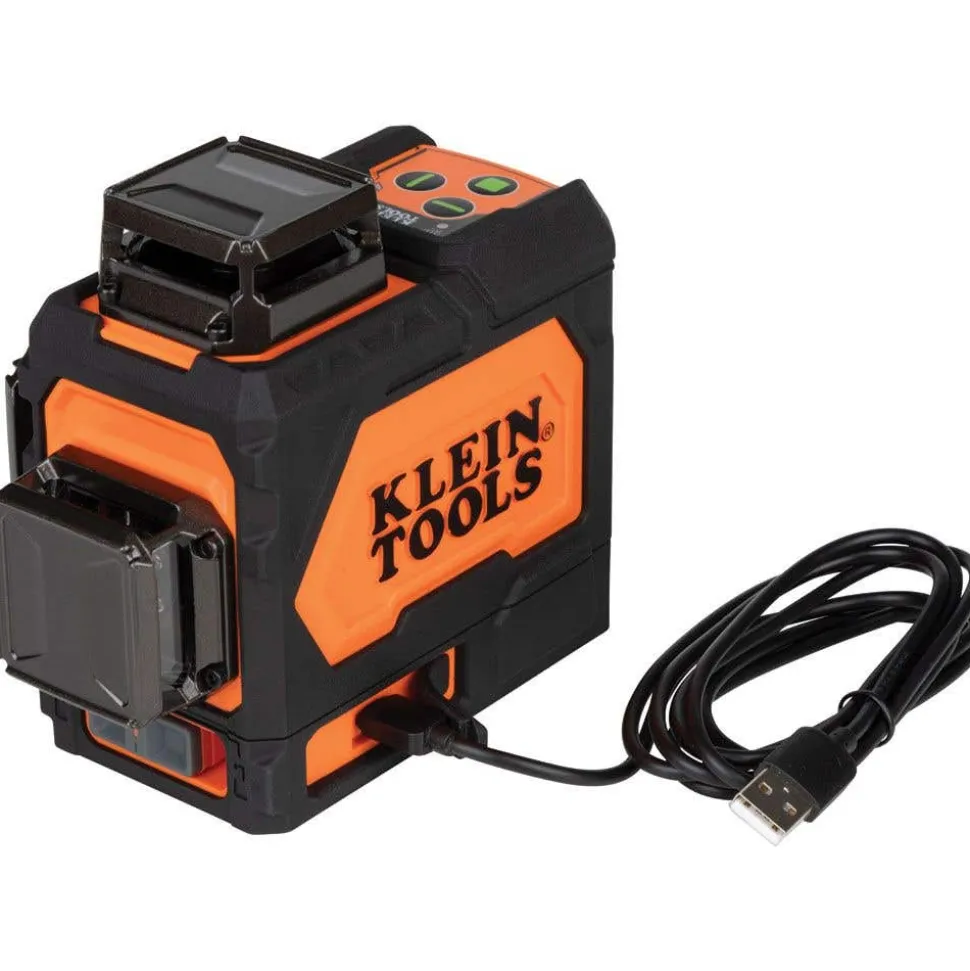

- More than 9 hour run time with integrated rechargeable Li-Ion battery.
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm).

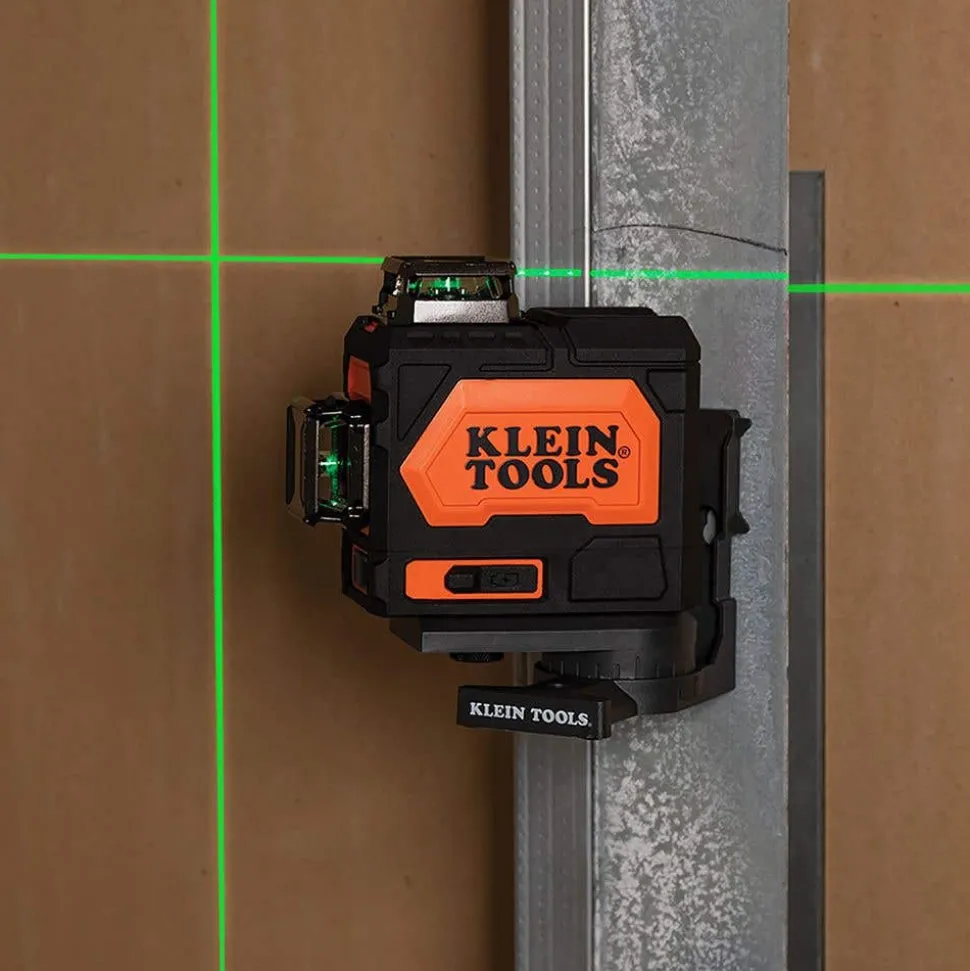

- Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads.
- Rugged body provides IP54 water and dust resistance; hard plastic carrying case included.
SPECIFICATIONS:
| Material | ABS Housing and Electronic Components |
| Batteries | Lithium-Ion |
| Laser Wavelength | 510-530 nm |
| Laser Safety | ≤1mW Each Beam, Class 2 Laser Product |
| Number of Beams | 3 |
| Plumb Laser | No |
| Indoor Range | 91′ (28 m) |
| Outdoor Range | 91′ (28 m) |
| Maximum Distance | 91′ (28 m) |
| Accuracy | +/- 4.5 mm per 10 m |
| Drop Protection | 3.3′ (1 m) |
| Dimensions (L x W x H)(in.) | 5.5 x 4.8 x 3.5 |
| Weight | 1.4 lbs. |
Â

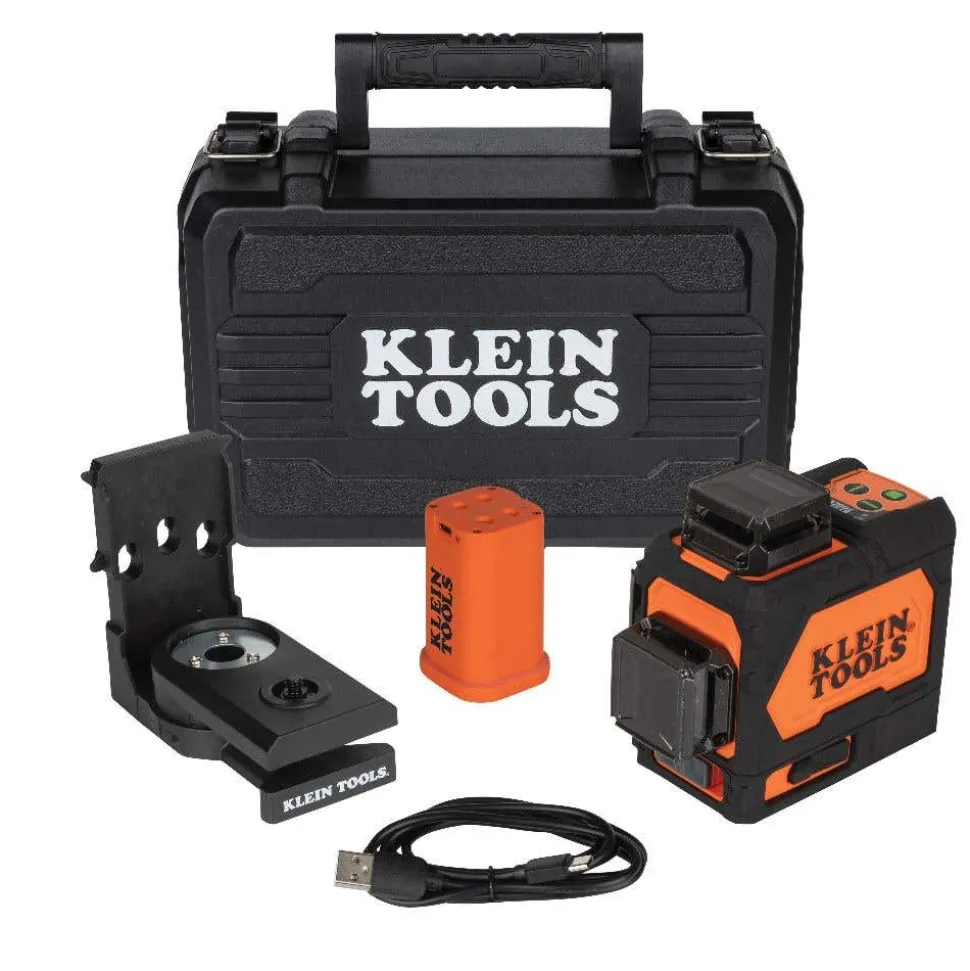

INCLUDES:
(1) Li-Ion Battery Pack
(1) USB-A to USB-C Charging Cable
(1) Magnetic Mounting Bracket
(1) Hard Carrying CaseÂ
| Overall Length | 5.5″ (2.2 cm) |
|---|---|
| Laser Color | Green |
| Receiver | No |
| Battery Life | 9 hr |
| Item Weight | 1.8900 lbs |
| Weight | 1.4 lb (0.6 kg) |
| Item Height | 4.7400 in |
| Replacement Parts | 29026 |
| Accessories | 69345 |
| Plumb Laser | No |
| Type | Self-Leveling Laser Level |
| Material | ABS Housing and Electronic Components |
| Accuracy | +/-3/16″ per 33′ (+/-4.7 mm per 10 m) |
| Outdoor Range | 91′ (28 m) |
| Overall Width | 4.8″ (1.9 cm) |
| Number of Beams | 3 |
| Low Battery Indicator | Yes |
| Bag or Case | Hard Carrying Case |
| Item Width | 3.4900 in |
| Laser Wavelength | 510-530 nm |
| Laser Safety | ≤1mW Each Beam, Class 2 Laser Product |
| Pulse Mode | No |
| Overall Height | 3.5″ (1.4 cm) |
| Ingress Protection | IP54 – Water and Dust Resistant |
| Transit Locking Mechanism | Yes |
| Magnet Type | Rare Earth Magnets |
| Included | Laser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case |
| Indoor Range | 91′ (28 m) |
| Maximum Distance | 91′ (28 m) |
| Batteries | Lithium-Ion |
| Item Depth | 5.5000 in |
| Application | Self-Leveling Laser Alignment Instrument |
| Standard | EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007 |
| OPT SKU | KLN-93PLL |
|---|---|
| MPN | 93PLL |
| UPC/GTIN | 092644692789 |
| Product Type | Laser Levels |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Levels > Laser Levels |
| Power Method | Cordless |
| Shipping Weight | 1.50 |
