Power Team 150 Ton Hydraulic 8″ Double Acting Cylinder Center Hole RH1508

Power Team SPX

Power Team 100 ton hydraulic 8 double acting cylinder center hole RH1508

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

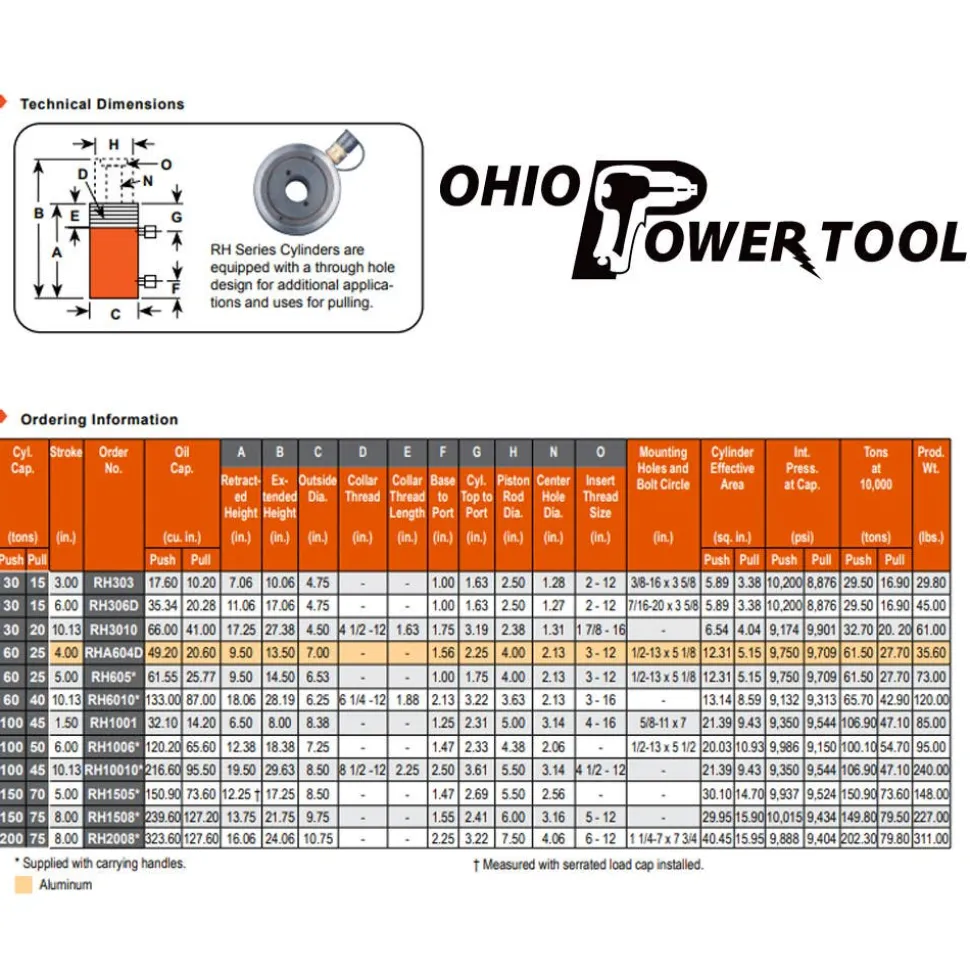

SPECIFICATIONS:

Stroke length:	8.000″
Piston rod diameter:	6.000″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	150 Ton
Pull capacity:	75 Ton
Oil capacity:	293.600″³
Pull/return oil capacity:	127.200³
Retracted height:	13.750″
Extended height:	21.750″
Effective area:	29.950″²
Pull cylindrical effective area:	15.900²
Tons at 10;000 PSI:	149.80 Ton
Pull tons at 10;000 PSI:	79.50 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;434 PSI
Bore size:	6.176″
Base to port:	1.547″
Outside diameter:	9.750″
Center hole diameter:	3.156″
Insert thread size:	5-12
Cylinder top to diameter:	2.406″
Material:	Steel
Weight:	227.00lbs

“
