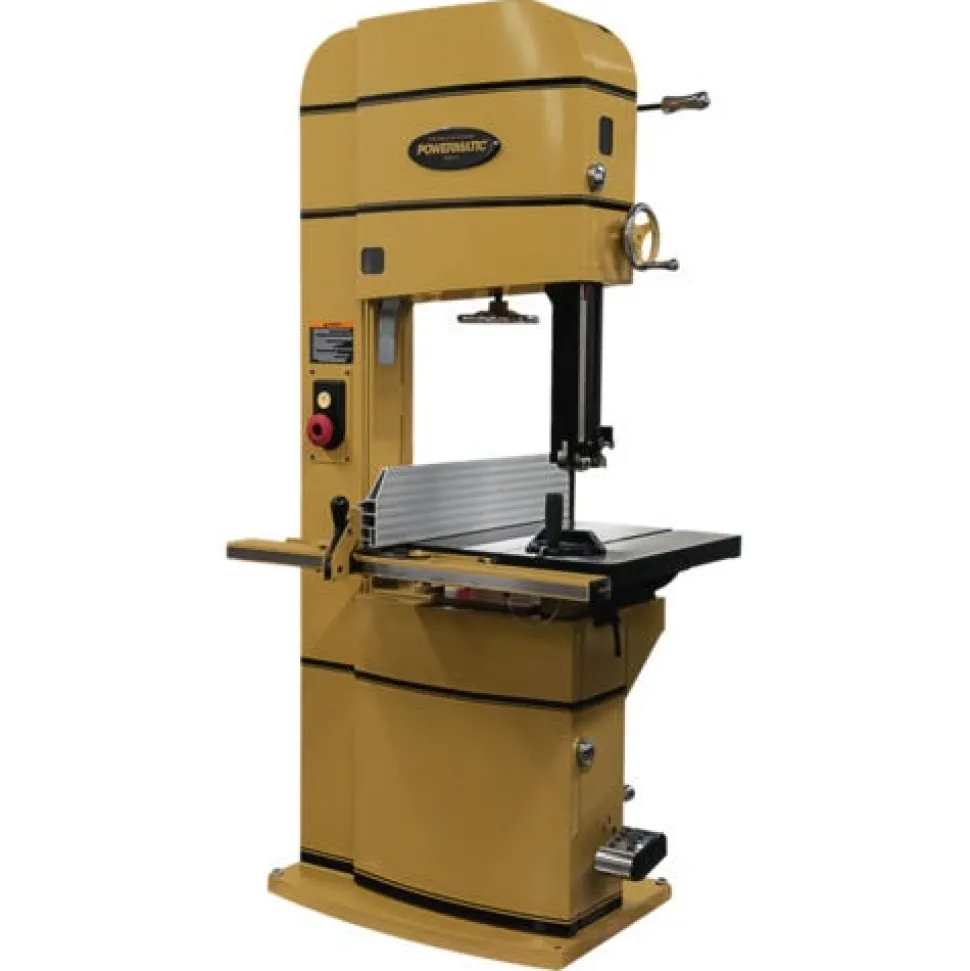

Powermatic PM2013B 20″ 5HP Single Phase Bandsaw 1791257B

$136.99

SKU: SKU36hEhNYMt2 Categories: Band Saws, Power Tools Tag: Powermatic Brand: Powermatic

Description
Reviews (0)

Additional Details

POWERMATIC
FREE SHIPPING
Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
The Accu-Fence has complete adjustability for aligning to blade and squaring to table
Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
Positive locking cam with pressure adjustment
Oversized side plate can be used in the horizontal or vertical position
Solid steel resaw post for optimum rigidity
Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending)
Heavy duty upper wheel support and tracking mechanism for smooth operation
Solid cast iron upper and lower wheels create the momentum needed for heavy resa
High end blade guides with tool less adjustment provide stability; increasing cut accuracy
Four sided blade guard for optimum protection
Integrated foot brake stops a coasting blade
Magnetic switch protects the motor from harm due to potential electrical supply issues
Heavy-duty 5 horsepower motor provides power needed for all projects
Specifications
Cutting Capacity Width (In.) 20
Cutting Capacity Height (In.) 18
Blade Length (In.) 170
Table Size (L x W) (In.) 24 x 27
Blade Speed (SFPM) 2300/4400
Maximum Saw Blade Width (In.) 1-1/2
Table Height from Floor (In.) 36
Table Tilt (Deg.) 10 Left; 45 Right
Minimum Saw Blade Width (In.) 1/4
Miter Gauge Positive Stops 45; 90
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 5
Motor Phase 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Current (Amps) 22

Specifications

More Information
OPT SKU	JET1791257B
MPN	1791257B
UPC/GTIN	731325353587
Product Type	Stationary
Google Category	Hardware > Tools > Saws > Band Saws
Power Method	Corded/Electric
Voltage	220V/240V
Shipping Weight	1,000.00
