Sale!

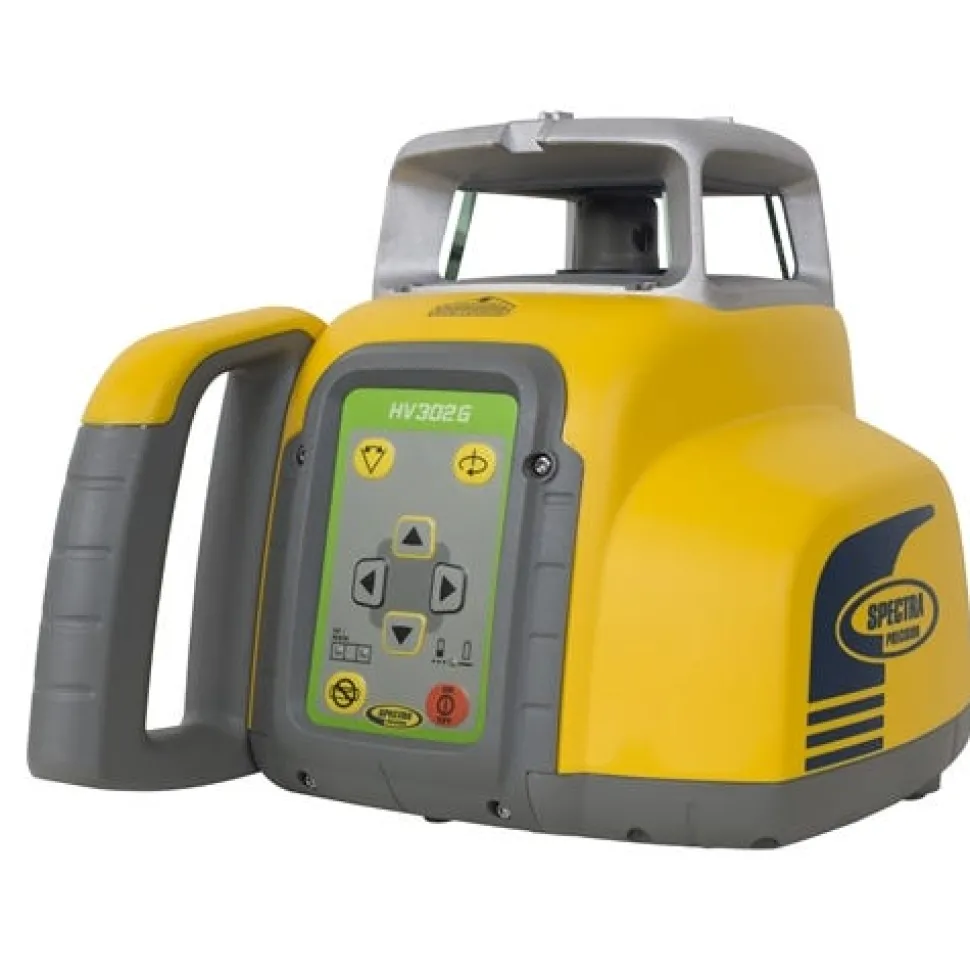

Spectra Precision HV302G Interior Horizontal/Vertical Laser Green Beam Kit HV302G-1
Original price was: $1,190.00.$124.99Current price is: $124.99.
Additional Details
Spectra Precision
HV302G Interior Horizontal/Vertical Laser Green Beam Kit HV302G-1
FEATURES:
- Automatic horizontal and vertical self-leveling
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working visible range of 75 m (250 ft) radius
- High-visibility beam – easily visible even in brightly lit conditions
- Split beam – enables plumb point transfer and 90-degree layout
- Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
- Long range RC402N Radio remote control
- HR150U – Interior Receiver with highly visible LEDs and built-in Magnetic Mount
- Radio communication between the HL760U DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- Extremely durable and portable
- 3 Year warranty

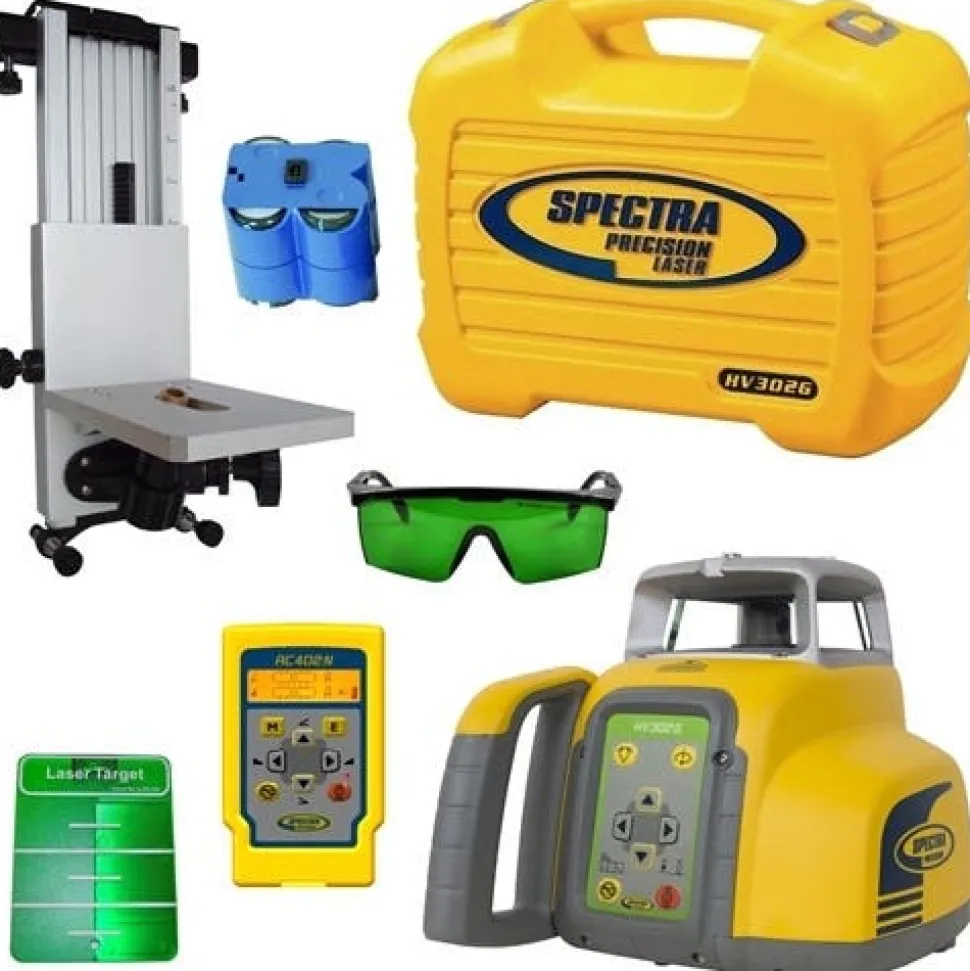

INCLUDES:
- HV302G
- M302 Wall Mount
- RC402N Radio Remote Control
- Q104234 NiMH Rechargeable Batteries
- Worldwide Charger
- Q104252 Laser Green
- Q104124 Magnetic Target Plate Green
- Case
SPECIFICATIONS:
| HV302G Specifications | |
|---|---|
| Leveling accuracy1;3: | ± 1.5 mm/30 m; 1/16“ @ 100 ft; 10 arc seconds |
| Operating visible radius | 1;2: 75 m (250 feet) |
| Rotation: | 0; 10; 80; 200; 600 rpm |
| Pre-selected scan sizes: | 5°; 15°; 45°; 90°; 180° and 0 |
| Laser type: | green diode laser 520 nm |
| Laser class : | Class 3A/3R; max. 5 mW |
| Self-leveling range: | ± 5° (±9%) |
| Leveling indicators: | LED flashes |
| Radio range (HL760U): | up to 100 m (330 ft) |
| Power source: | 10.000 mAh NiMH battery pack |
| Battery life : | 30 hours NiMH; 25 hours alkaline |
| Operating temp.: | -20°C to 50°C (-4°F to 122°F) |
| Storage temp.: | -20°C to 70°C (-4°F to 158°F) |
| Tripod attachments: | 5/8 x 11 horizontally and vertically |
| Dust and waterproof: | Yes – IP66 |
| Weight: | 3.1 kg (6.8 lbs) |
| Low voltage indication: | LED battery indicator |
| Low voltage disconnection: | unit shuts off |
| Warranty: | 3 Years |
| RC402N Remote Control Specifications | |
| Operating range1;3: | up to 100 m (330 ft) |
| Power source: | 2 x 1.5V AA alkaline batteries |
| Battery life: | 130 hours |
| Dust and waterproof: | Yes – IP66 |
| Weight: | 0.26 kg (0.57 lbs) |
“
Specifications
| OPT SKU | SPEC-HV302G-1 |
|---|---|
| MPN | HV302G-1 |
| UPC/GTIN | 692284012048 |
| Product Type | Laser Levels |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Levels > Laser Levels |
| Power Method | Cordless |
| Shipping Weight | 49.00 |
